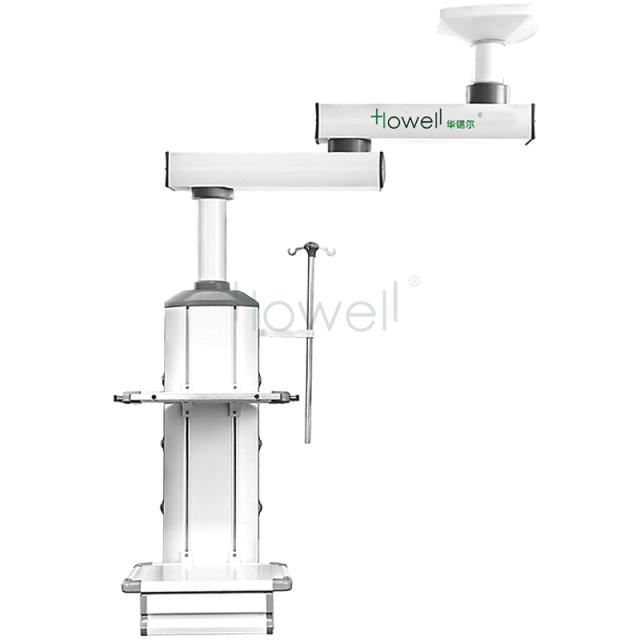

Double Arm Rotating Medical Surgical Pendant HE-K-3
1. The power supply required for the operation of Medical Ceiling Pendant should be alternating current (AC) 220V with a frequency of 50Hz.
2. The range of motion (radius) of the double transverse arm can be adjusted according to the specific needs of the hospital, providing two choices of 700-1100 millimeters and 400-600 millimeters.
3. The horizontal rotation angle of the transverse arm and junction box of the Double Arm Rotary Surgical Pendant can range from 0° to 340°, supporting individual or simultaneous rotation.
4. The net weight of the device is limited to a maximum of 60 kg.
5. The instrument platform of the Electric Double Arm Surgical Pendant is designed as a two-tier adjustable structure with a height of 550 mm to 400 mm and is equipped with rounded corners for impact protection.
6. The gas interface configuration should comply with relevant national standards and can be customized according to the specific needs of the hospital:
a. Each interface uses a different color and shape to avoid confusion during use.
b. The interface is designed to withstand more than 20,000 insertion and removal cycles.
c. Equipped with a three-state secondary seal: open, closed, and pull position for easy gas maintenance.
7. The unit shall be equipped with a power outlet rated 220V/10A, along with a network interface and a telephone interface.
8. An earth terminal must be provided to ensure that the equipment is safely earthed.
9. The equipment should also contain a height-adjustable stainless steel infusion pole.
10. The main material of the building should use high-strength aluminum alloy profiles to ensure structural solidity and durability.
11. The surface of the equipment is treated with electrostatic spraying process to improve its durability and aesthetics.
12. During installation, it is necessary to ensure that the ceiling installation is stable and firm without shaking.
