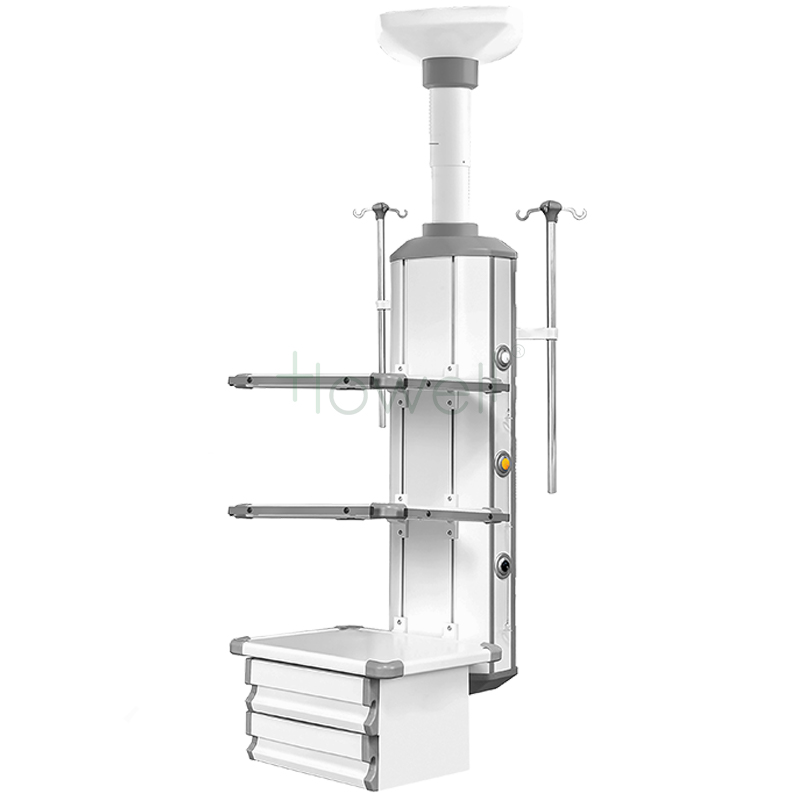

Medical Column With Dual-Purpose Pendant HE-K-8
1. The Surgical Column Tower needs to be connected to AC power AC220V at a frequency of 50Hz.
2. The moving radius of the suspension arm can be flexibly adjusted between 700 and 1100 mm to adapt to the space needs of different hospitals.
3. The horizontal rotation Angle of the suspension arm and junction box can realize free rotation from 0 degrees to 340 degrees, which can be operated separately or in coordination.
4. The load capacity of the device shall reach or exceed 80 kg.
5. The Dual Purpose Column Pendant is equipped with three adjustable platforms of different heights, ranging in size from 550 mm to 400 mm, and contains a pullout drawer.
6. The gas interface design meets the domestic standards, with two oxygen input ports, two oxygen intake interfaces and two air interfaces (can be customized according to the special requirements of the hospital). Each interface is a different color and shape to avoid misoperation, and is extremely durable and can be re-plugged and unplugged more than 20,000 times.
7. It provides eight 220 volt, 10 amp power interfaces and one network and telephone interface.
8. The device contains a special grounding terminal.
9. Equipped with a stainless steel guide rod with adjustable height.
10. The main composition material is high quality aluminum alloy profile.
11. The surface is treated by electrostatic spraying process, which not only enhances the durability, but also improves the appearance of beauty.
12. The top mounting design ensures the stability and safety of the suction system.
