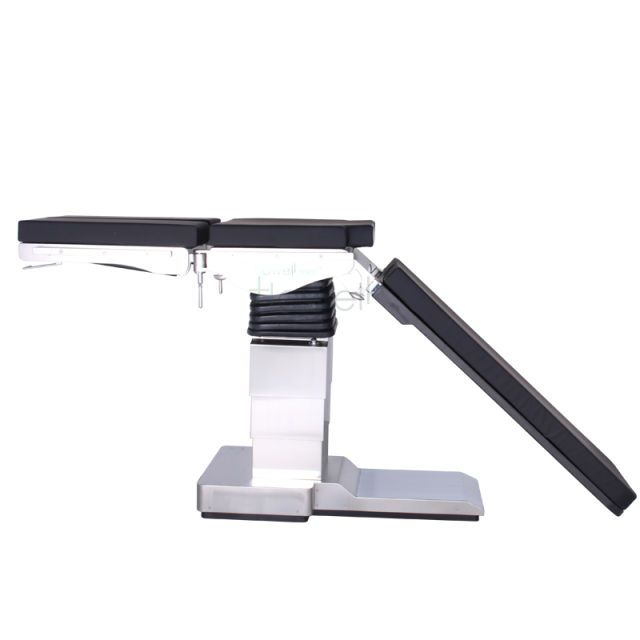

Radiolucent Carbon Fiber Imaging Orthopedic Operating Table

Radiolucent Carbon Fiber Imaging Orthopedic Operating Table HE-608P (Classic imaging)

1.The back of the Radiolucent Operating system is made of pure carbon fiber and has an all-round 360-degree perspective structure, ensuring excellent imaging clarity and visibility. Its size of up to 1400 mm provides exceptional flexibility and scope for surgical operations.
2.The table design follows the principle of modularity, and the installation mode can be flexibly changed according to the specific needs of the operation to adapt to different surgical scenarios.
3.A pedal brake system is built into the bottom unit to ensure stable positioning of the operating table, while an electric brake upgrade option is available to meet individual needs.

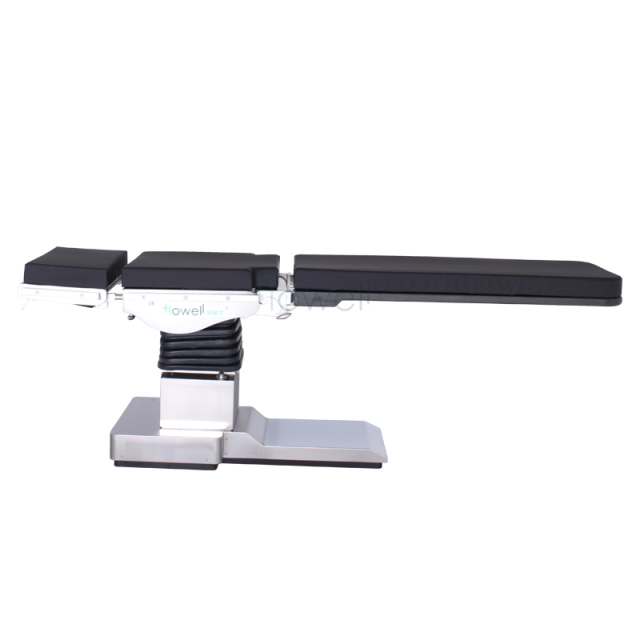

4.The special T-Shape Base Operating Table not only provides the surgical team with ample foot space and enhanced operational stability, but also uses high-quality 304 stainless steel material, which is durable and easy to maintain.
5.The low X-ray absorption of the all-carbon fiber countertops not only ensures high resolution of the images, but also minimizes radiation exposure to patients and medical staff.

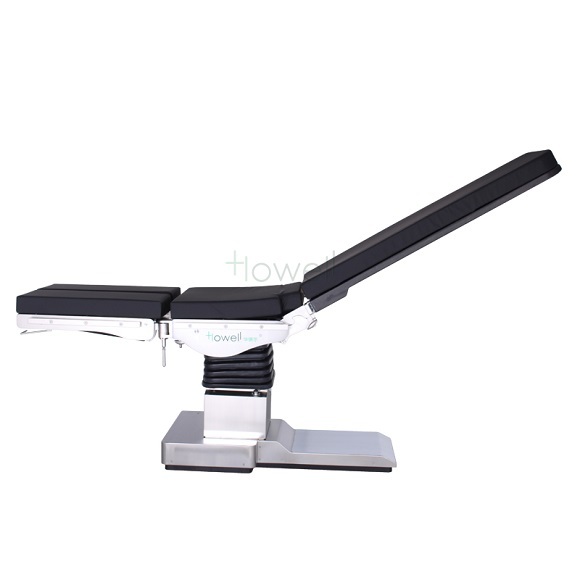

6.The Carbon Fibre Operating Table has a 250 mm translation function and is equipped with an all-carbon fibre backplane to achieve an effective perspective depth of up to 1500 mm, providing greater operational convenience for complex surgeries.
7. The operating table is equipped with a battery and a charging device, which can ensure that the operation can continue automatically with the backup power supply when the AC power is interrupted. It will charge automatically after the power cord is connected. The power supply requirement is 220v 50Hz.
8. Base brake device: Electrically operated, it can firmly fix the bed platform.
9. The T-shaped design of the base provides the surgical team with excellent foot space and stable center of gravity. The chassis height is 95mm, which can be fully compatible with G-arms and X-ray machines. The shell is made of high-quality 304 stainless steel.
10. Brand-new material memory foam mattress: The mattress is 70mm thick and uses the best combination of 30mm memory foam and 40mm high-density foam, which can relieve the pressure caused by the long-term surgery between the patient's body and the bed surface.
