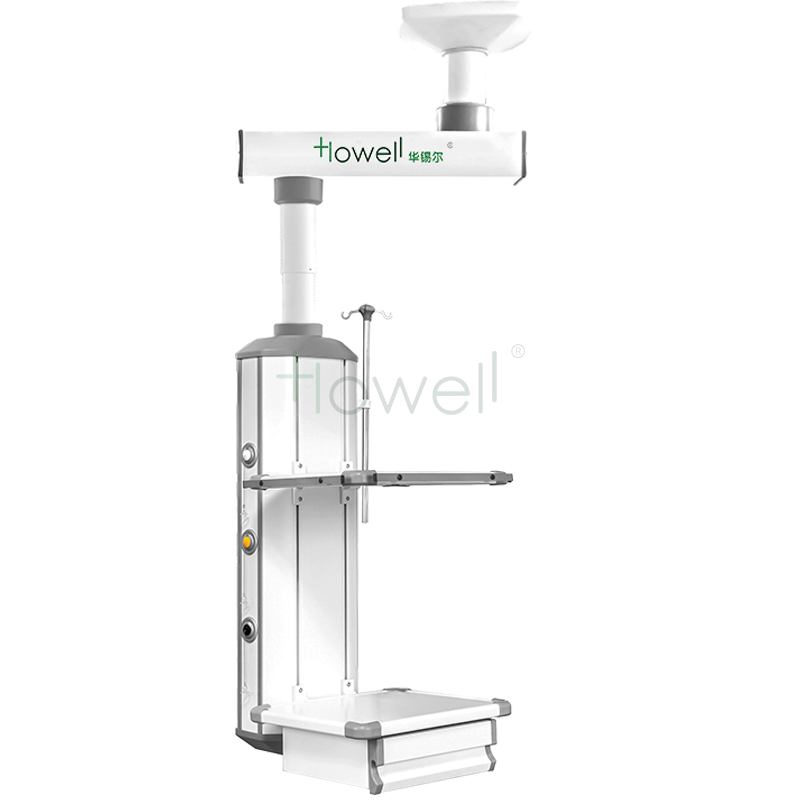

Single Arm Motorized Surgical Pendant HE-K-10
The Single Arm Surgical Tower, as an auxiliary tool in the new operating room, is widely used in the medical care field. It is characterized by its small size, scientific layout, and can be lifted up to 400 mm and rotated 340 degrees. In the down state, the medical staff can easily complete the operation with a single hand without affecting the normal work flow. Motorized Single Surgical Pendant can easily adjust and lock the tower position according to the user's needs. The versatile platform integrates core functions such as medical gas supply, suction, vacuum suction, strong and weak electricity, and network access. At the same time, the platform can also carry a certain weight of medical equipment, becoming an ideal workstation that medical personnel rely on to integrate power supply and equipment support.
(The configuration of the platform, such as drawers, gas interfaces, power sockets, network interfaces and telephone interfaces, can be customized according to the individual needs of customers.)
1. The horizontal rotation range can be adjusted between 0 degrees and 340 degrees.
2. The maximum load-bearing capacity of the terminal box is 80 kg.
3. The standard air source is equipped with 2 oxygen interfaces, 2 suction interfaces and 1 exhaust interface.
4. The power supply section contains 8 sockets, each with 3 sockets.
5. There are 26 equipment pallets in total.
6. The equipment set includes a set of infusion rods.
7. Lift travel range is 400 mm.
