Single Arm Surgical Medical Pendant

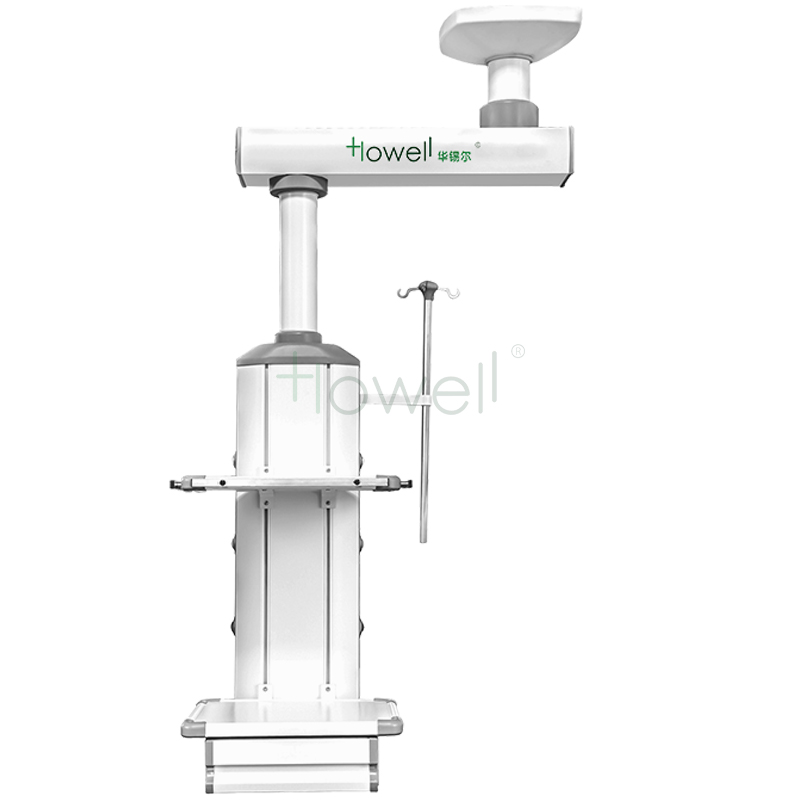

Single Arm Surgical Medical Pendant  HE-K-4

1. The power supply specification required for operation shall be alternating current (AC) 220 volts with a frequency of 50 hertz.
2. The range of motion of the cross arm of the Single Arm Medical Pendant is designed to be within a radius of 700 to 1100 millimeters, which can be flexibly adjusted according to the actual needs of the hospital.
3. The rotation angle of the junction box of the Ceiling Mounted Surgical Pendant should range from 0 degrees to 340 degrees.
4. The maximum weight supported by the device should not exceed 60 kg.
5. The instrumentation platform is designed as a two-tiered structure with adjustable height in the range of 550 mm to 400 mm.
6. The gas interface configuration of the Medical Gas Pendant shall consist of two oxygen interfaces, two suction interfaces, and two air interfaces (or as configured to meet the specific requirements of the hospital):
7. a) Each connection shall be distinctively colored and uniquely shaped to prevent misuse.
8. b) These interfaces shall be capable of withstanding more than 20,000 cycles of plugging and unplugging.
9. c) Equipped with a secondary seal for on, off, and off states for gas maintenance.
10. The unit shall be equipped with 8 power outlets, 6 of which shall be 220V 10A size, plus 1 network outlet and 1 telephone interface outlet.
11. The device must be equipped with an earth terminal to ensure safe grounding.
12. A height-adjustable stainless steel infusion pole is required.
13. The main construction material of the building should be selected from high-strength aluminum alloy profiles to ensure a strong and durable structure.
14. The surface treatment process of the equipment will adopt electrostatic spraying technology to enhance its durability and aesthetics.
15. Ceiling mounting should ensure that the equipment is stable and firm without shaking phenomenon.
